The secret to making speakers sound great lies with the crossover you use. With the dbx® 234xs Crossover you’ll get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in building the world’s finest processors. The 234xs uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 234xs leaves your amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner and better sound.

The dbx 234xs is a dual channel crossover with all the features you would expect from a professional product. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid “click” controls to the high quality XLR inputs and outputs.

Recommended for: Portable.

Additional Information:

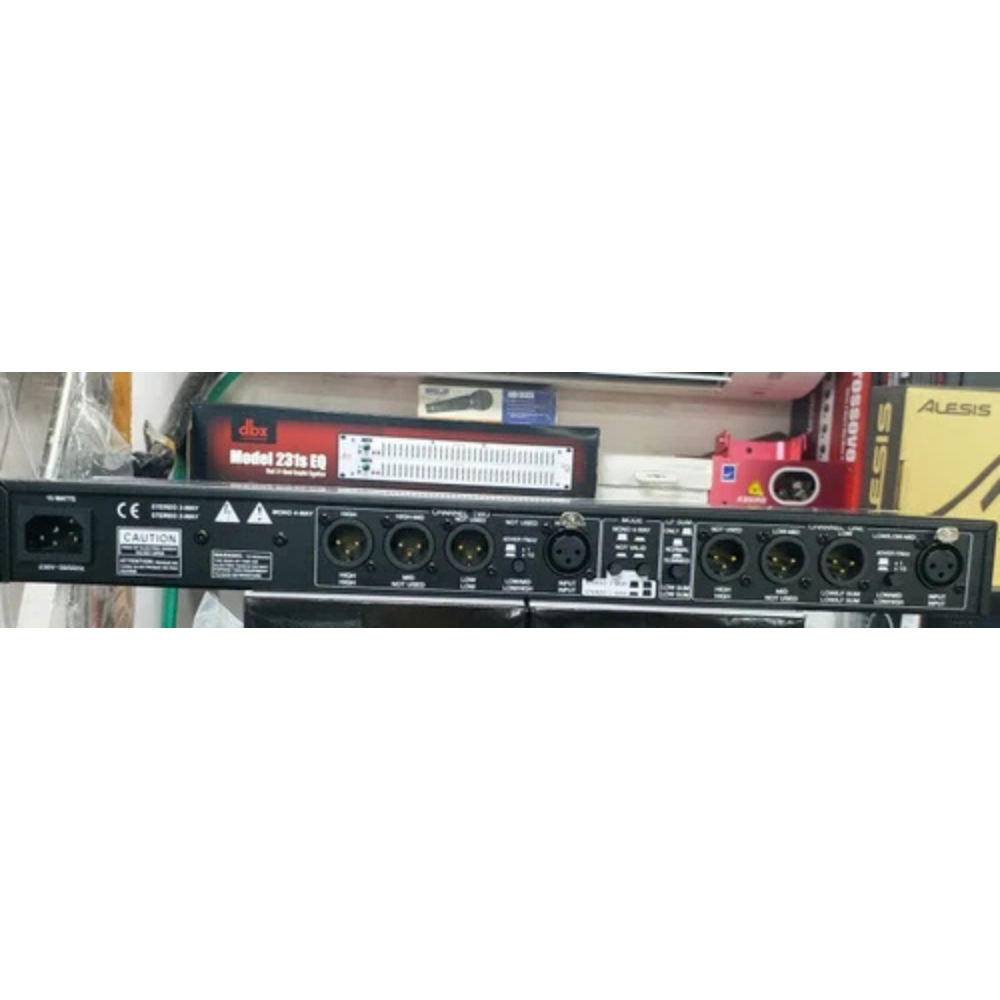

XLR balanced ins and outs

Mode switches for mono 4-way or stereo 2-way/3-way operation

Low frequency summed (subwoofer) output

x10 range switch on both channels

40Hz high pass (low cut) filter both channels

Phase reverse switch on all outputs

Individual level controls on all outputs

24dB per octave Linkwitz-Riley filters (the professional standard)

Stereo/Mono status LEDs indicate the selected mode

dbx® 2 year parts and labor as standard

CSA NRTL/C approved

CE compliant

Specifications:Input ConnectorsXLRInput TypeElectronically balanced/unbalanced, RF filteredInput ImpedanceBalanced >50k ohm, unbalanced >25k ohmMax Input>+22dBu balanced or unbalancedCMRR>40dB, typically >55dB at 1kHzOutput ConnectorsXLROutput TypeImpedance-balanaced/unbalanced, RF filteredOutput ImpedanceBalanced 60 ohm, unbalanced 30 ohmMax Output>+21dBu balanced/unbalanced into 2k ohms or greaterBandwidth20Hz to 20kHz, +/-0.5dBFrequency Response< 3 Hz to > 90 kHz, +0/-3 dBSignal to Noise RatioRef: +4 dBu, 22 kHz measurement bandwidthSignal-to-Noise (Stereo Mode)>94dB (Low Output), >93dB (Mid Output), >90dB (High Output)Signal-to-Noise (Mono Mode)>94dB (Low Output, Low/Mid Output); >92dB (High/Mid Output); >88dB (High Output)Dynamic Range> 106 dB, unweighted, any outputTHD+Noise< 0.004% at +4 dBu, 1 kHz; < 0.04% at +20 dBu, 1 kHzInterchannel Crosstalk< -80 dB, 20 Hz to 20 kHzCrossover Frequencies (Stereo Mode)Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Mid/High 450Hz to 9.6kHz (x10 setting)Crossover Frequencies (Mono Mode)Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Low-Mid/High-Mid: 450 Hz to 9.6 kHz; High-Mid/High: 450 Hz to 9.6 kHzCrossover Filter TypeLinkwitz-Riley, 24 dB/octave, state-variableLow cut SwitchActivates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel.
