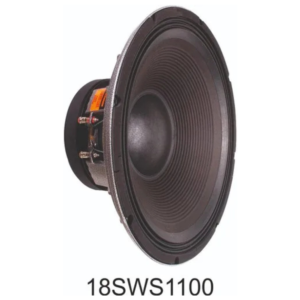

Jbl 18 SWS 1100 Speaker Sub Woofer
| Features | |
|---|---|
|
Color |
Black |
|
Model Name/Number |
Black18 SWS |
|
Brand |
JBL |
|
Power |
1100 W |
|
Rated Impedance |
8 Ohms |
|
Efficiency |
97% |
|
DC Resistance |
Yes |
|
Remote Control |
Yes |
|
Country of Origin |
Made in India |
| Specifications | |
|---|---|
|
Diameter |
18” |
|
Impedance (ohms) |
8 |
|
RMS (W) |
1,100 |
|
Musical Program (W) |
2,200 |
|
SPL 1W @ 1m (dB) |
97 |
|
Frequency Response (-10dB) |
30 to 3,000 |
|
Resonance (Hz) |
34 |
|
Voice coil diameter in. (mm) |
4 (100) |
|
Voice coil |
Edge wound Al |
|
Magnet weight oz. (g) |
120 (3,400) |
|
Basket |
Die cast aluminum with epoxy finish |
₹16,000/Piece
Description
18SWS1100, Recommended for use as a subwoofer in a bass reflex or horn loaded cabinets. Capabilities: High power handling, Large linear excursion. Bandpass extension into the very low frequency zone. High power output with low distortion.
